Krytox TS4 Thread Sealant



Sealants and tape often expand under pressure. This requires plants to halt operations for re-application, or worse, address expensive thread damages. Krytox™ TS4 is a great replacement to avoid constant maintenance.



High quality sealants, like Krytox TS4, prevent leaks and damages that jeopardize operations, even in extreme environments.

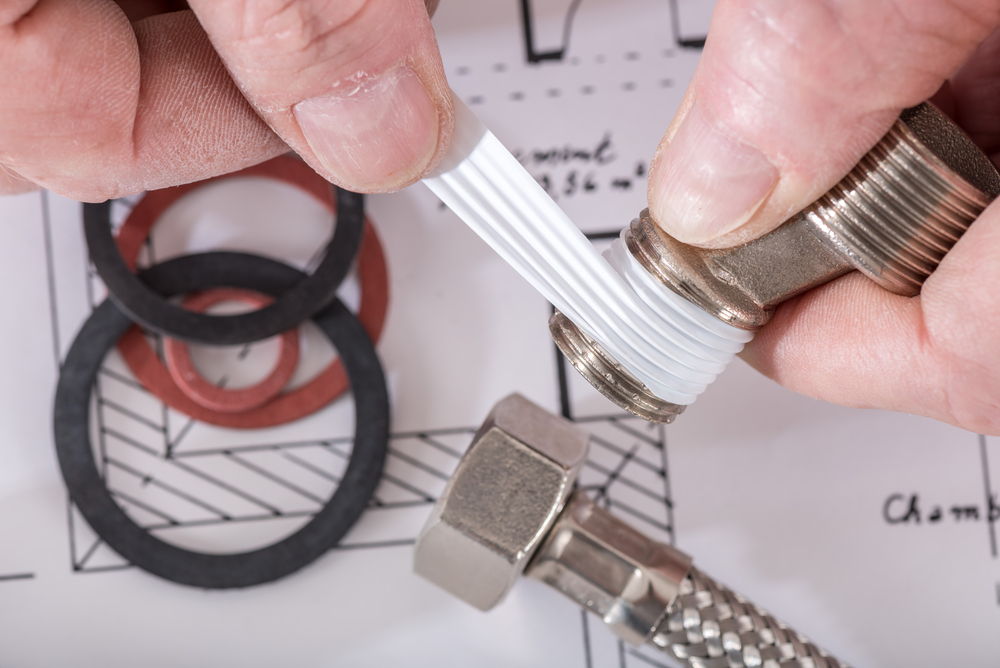

Proper application and a high quality sealant, like Krytox TS4, is the solution for demanding applications, and can help reduce maintenance costs and operational halts. Thread sealant (TS4) is unlike PTFE tape, which should be removed before re-application. Krytox TS4 can be re-applied over existing Krytox thread sealant. Clings to threads and will not shred or tear on assembly/disassembly. Cannot plug or restrict critical piping, valves, or instruments like tape solids. Krytox TS4 is non-reactive, non-toxic, nonflammable, non-corrosive and compatible with most seal, O-ring, and valve polymers. No VOC content or hydrocarbon in the product; safe for oxygen use with no auto-ignition temperatures. Tested leak free under helium at 400 psi for 7 days.* Safe for use: The Chlorine Institute (Pamphlet 164) rates Krytox lubricants a “1”. Lubricates threads, preventing costly thread damage from galling and seizing during assembly. Allows low breakaway torque for easy-to-break connections.



Learn more about Krytox TS4 Thread Sealant, including how to properly apply:



Key Benefits of Krytox™ TS4:

  • Can be re-applied over existing Kytox™ thread sealant
  • Clings and will not shred or tear on assembly/disassembly
  • Cannot plug or restrict critical piping, valves or instruments
  • Non-reactive, non-toxic, nonflammable, non-corrosive
  • Compatible with most seal, O-ring and valve polymers
  • No VOC content or hydrocarbon
  • Operating temperature range of –54–149 ºC (–65–300 ºF).
  • Cost-effective- only a small amount of sealant needed
  • Fast and easy to apply

Suggested Krytox TS4 Thread Sealant Application Procedures:

  • Clean all pipe and fitting threads with a non-chlorinated solvent to remove cutting/protective oil and chase threads with stiff wire brush to remove burrs, debris, and old sealant (PTFE tape, pipe dope, anaerobic resin, etc.).
  • Check pipe and fittings against ASNI/ASME guideline B.20.1-1983 to meet specifications for proper fit and engagement.
  • Construct piping systems following all applicable ANSI/ ASME codes.
  • Apply Krytox TS4 to fill the male threads evenly, up to the recommended engagement length from the ANSI/ ASME guideline. DO NOT OVERTIGHTEN.
